Supporting ultra-high temperature reaction kettle

The reaction kettle temperature control system can be used to control the temperature of chemical synthesis reactions. By precise temperature control, the reaction rate, selectivity, and product purity can be adjusted to improve the efficiency and yield of the synthesis reaction. Putek's reaction kettle temperature control system is suitable for dynamic constant temperature control of cold and heat sources such as jacket reaction kettles, microchannel reactors, reaction devices, combined chemistry, as well as low-temperature distillation, distillation, extraction and other equipment in the pharmaceutical industry.

Temperature control accuracy: ± 0.5 ℃
Temperature control object: material temperature or outlet temperature
Heating and cooling power: 2.5kw 50kw
The temperature control system of reaction vessels is widely used in the fields of chemistry and pharmaceuticals. They can provide precise temperature control, optimize reaction conditions, improve product quality and yield, and support laboratory research and industrial production.

Consult immediately

OUR
ADVANTAGE

products

PROTECO

See the parameters clearly

Model

  • temperature range
  • heating power
  • Temperature accuracy
  • Temperature feedback
  • Temperature display
  • Heating method
  • Cooling method
  • operation panel
  • communication protocol
  • External input
  • Storage function
  • Shell material
  • Mobile/Fixed Devices
  • safety protection
  • Equipment voltage
  • Fully enclosed system

Reaction kettle temperature control system

  • RT+45℃~350℃
  • 0.5~95kW
  • Export temperature ± 0.5 ℃, material temperature ± 1 ℃
  • Equipment thermal conductivity medium temperature feedback PT100 (return temperature, outlet temperature, material temperature)
  • 0.01℃
  • Electric heating
  • Rapid cooling of cooling water (optional)

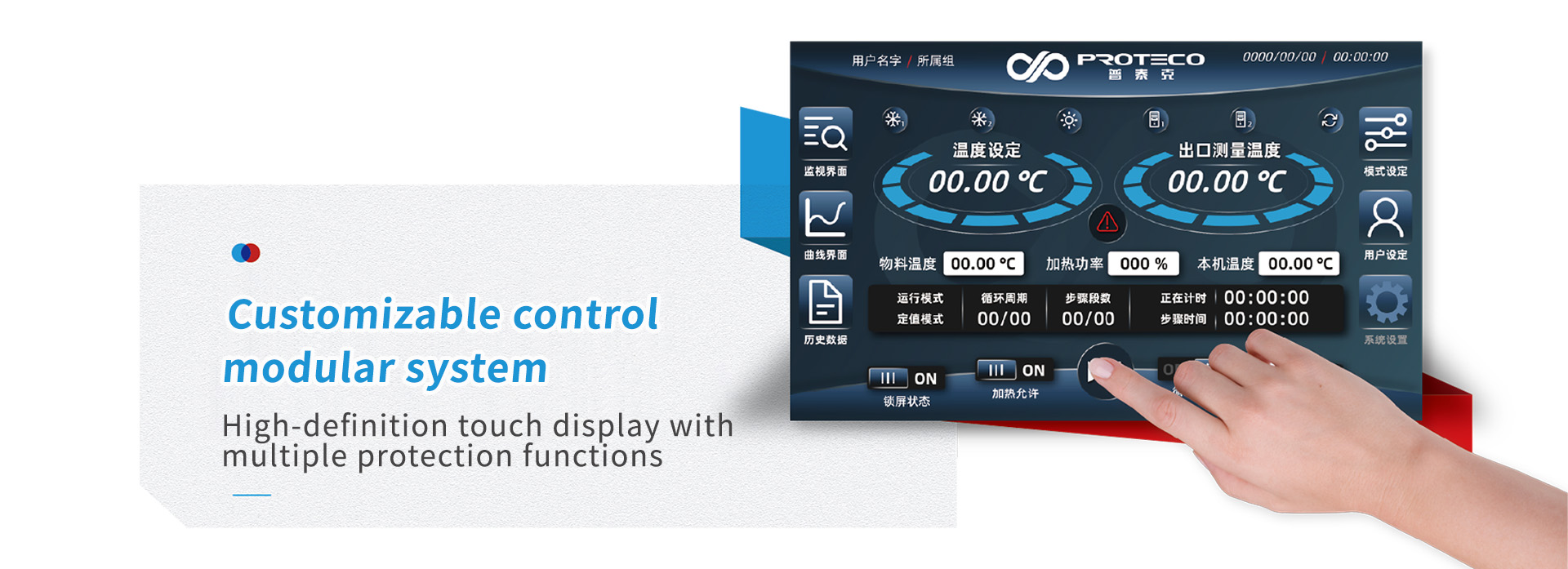

  • 7-inch color touch screen with Chinese display, easy to operate and intuitive display, capable of displaying and recording temperature curves and test data
  • MODBUS RTU protocol RS 485 interface
  • External temperature sensor port and USB data interface
  • During the execution of the experiment, the graphical curve can be displayed in real time; After the test is completed, the completion curve can be called and copied.
  • Cold rolled sheet spray coating
  • Mobile polyurethane casters
  • Real time display of equipment operation status, automatic diagnosis of fault information, and multiple alarm protection functions
  • AC 380V 50Hz, Three phase five wire system
  • Pipeline material: SUS304, designed with a fully enclosed structure

Product recommendations

Integrate existing thermal energy (such as steam, cooling water, and ultra-low temperature liquids) into a single fluid system or secondary circuit used to control the temperature of process equipment, forming a non-contact temperature control system for a single heat conduction liquid in the reaction vessel jacket

Direct TCU solution
More

In the product development and production processes of the chemical and pharmaceutical industries, temperature control is crucial for safe and high-quality reaction products. Putec's PTHC series is suitable for process industry and process engineering, and is applied to dynamic constant temperature control of cold and heat sources such as jacket reactors, microchannel reactors, reaction devices, combined chemistry, as well as low-temperature distillation, distillation, extraction and other equipment in the pharmaceutical industry.

High precision high and low temperature integrated machine
More

IGBT belongs to power semiconductor devices. In the field of new energy vehicles, as the core device of electronic control systems and DC charging piles, IGBT directly affects the power release speed, vehicle acceleration ability, and high speed of electric vehicles

IGBT high and low temperature testing
More

In the product development and production processes of the chemical and pharmaceutical industries, temperature control is crucial for safe and high-quality reaction products. Putec's PTHC series is suitable for process industry and process engineering, and is applied to dynamic constant temperature control of cold and heat sources such as jacket reactors, microchannel reactors, reaction devices, combined chemistry, as well as low-temperature distillation, distillation, extraction and other equipment in the pharmaceutical industry.

High and Low Temperature Closed Dynamic Temperature Control System
More
