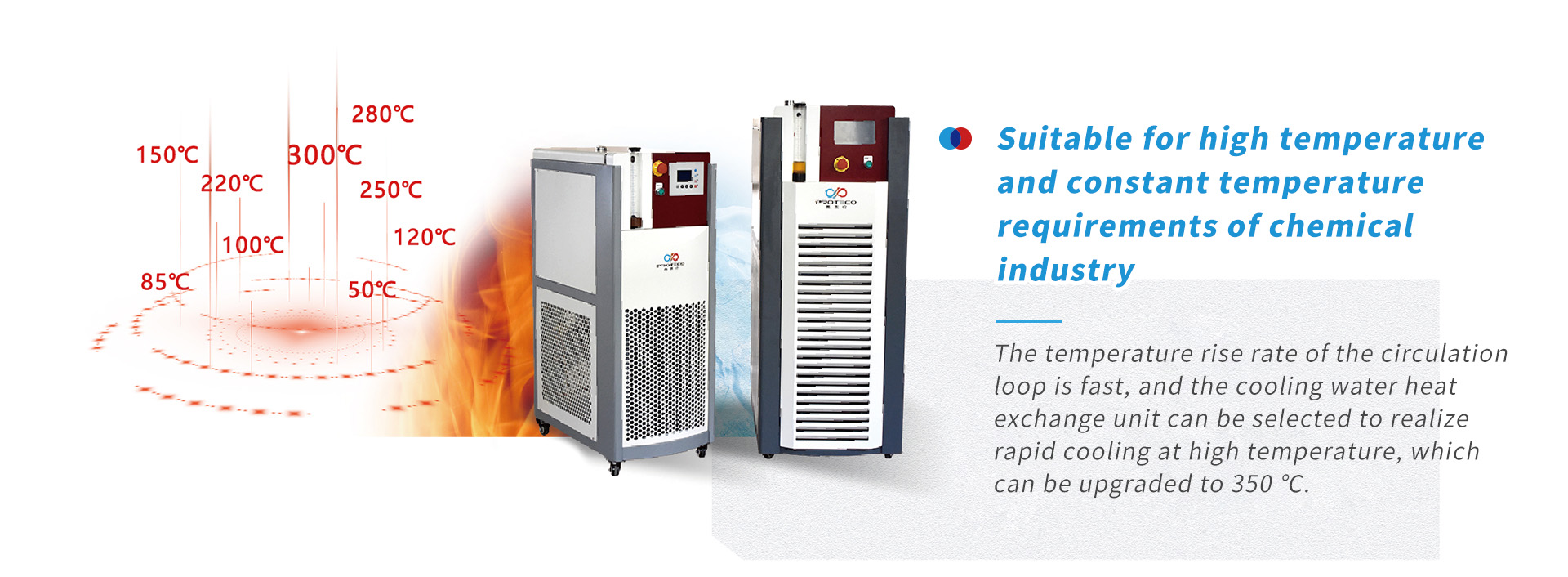

High temperature enclosed circulator

The Putek PTHF series high-temperature sealed circulator adopts a fully sealed design, which will not produce odors at high temperatures, while avoiding oxidation of the heat transfer oil at high temperatures, extending the service life of the heat transfer oil. It can be equipped with a cooling water heat exchange unit to achieve rapid cooling at high temperatures, and can be equipped with positive pressure explosion-proof or isolation explosion-proof. It is suitable for external applications that require rapid heating, as well as process temperature control of reaction kettles in chemical and pharmaceutical production processes at high temperatures.

Temperature control range: RT+ 300℃
Heating power: 3.5KW 50KW
Temperature control mode: PLC controller+intelligent PID temperature control module

Consult immediately

OUR
ADVANTAGE

products

PROTECO

See the parameters clearly

Model

  • model
  • temperature range
  • Main applications
  • Temperature control mode
  • Control system
  • heating power
  • communication protocol
  • External input
  • Interface size
  • Distribution power
  • Power Supply
  • Shell material
  • Optional connecting pipeline
  • Equipment advantages
  • Equipment advantages
  • Expansion and upgrading
  • Expansion and upgrading

Chemical high-temperature enclosed circulator

  • PTHF-35~500
  • Normal temperature~300 (no-load)
  • This product is suitable for external applications that require rapid heating, temperature control of jacket reactors and heat sinks, and equipment such as distillation, distillation, and extraction in the pharmaceutical industry.
  • Control material temperature
  • PLC controller, intelligent PID temperature control module
  • 3.5kw~50kw
  • MODBUS RTU protocol RS 485 interface
  • External temperature sensor port, USB data interface
  • G1/2~DN50
  • 5kW ~55kW
  • 3-phase/380V/50HZ
  • Electrostatic spray galvanized sheet/stainless steel 304
  • Metal insulation pipe or fluorine rubber pipe or silicon rubber pipe
  • 1. Fully enclosed system: does not produce oil mist at high temperatures and does not absorb air moisture at low temperatures. The system will not increase pressure due to high temperatures during operation, and automatically replenishes thermal conductivity medium at low temperatures.
  • 2. Safety protection function: With self diagnostic function;
  • 3. Multiple alarm protection: protection functions for circulating pump failure, compressor overheating, high pressure, low pressure, overcurrent, over temperature, phase loss, phase sequence, etc
  • 4. Optional explosion-proof models: positive pressure explosion-proof model suffix PEX, explosion-proof model suffix DEX)

Product recommendations

Temperature control of double-layer reactors in the fields of chemical, pharmaceutical, and biological industries Temperature control of distillation crystallization purification system Temperature control of high-pressure reactor Semiconductor equipment cooling Temperature control of mixing tank Temperature control of crystallization system

Oil cooler
More

The reaction kettle temperature control system can be used to control the temperature of chemical synthesis reactions. By precise temperature control, the reaction rate, selectivity, and product purity can be adjusted to improve the efficiency and yield of the synthesis reaction. Putek's reaction kettle temperature control system is suitable for dynamic constant temperature control of cold and heat sources such as jacket reaction kettles, microchannel reactors, reaction devices, combined chemistry, as well as low-temperature distillation, distillation, extraction and other equipment in the pharmaceutical industry.

Supporting ultra-high temperature reaction kettle
More

The Putek PTHF series high-temperature sealed circulator adopts a fully sealed design, which will not produce odors at high temperatures, while avoiding oxidation of the heat transfer oil at high temperatures, extending the service life of the heat transfer oil. It can be equipped with a cooling water heat exchange unit to achieve rapid cooling at high temperatures, and can be equipped with positive pressure explosion-proof or isolation explosion-proof. It is suitable for external applications that require rapid heating, as well as process temperature control of reaction kettles in chemical and pharmaceutical production processes at high temperatures.

High temperature enclosed circulator
