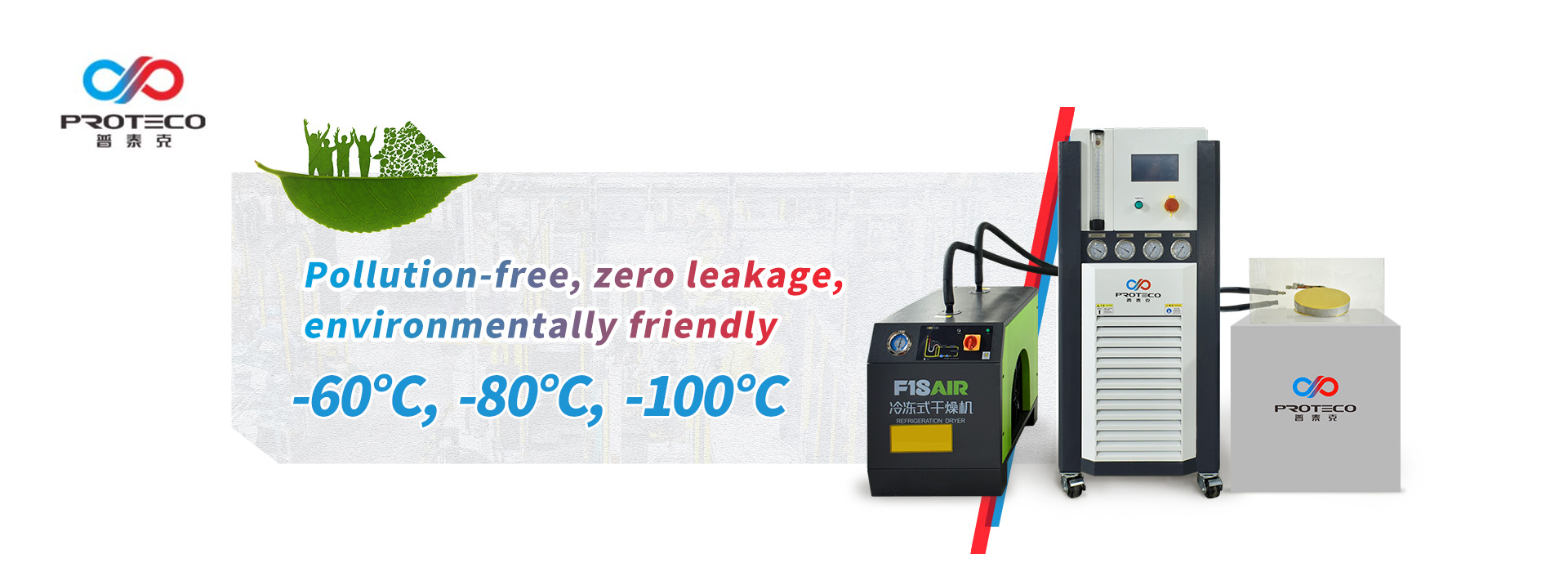

gas refrigerator

Provide accurate and fast ambient temperature for chips, modules, integrated circuit boards, electronic components, etc. Replacing liquid nitrogen to provide rapid cooling for local heat sources. Provide a cold source for testing the electrical performance, reliability, aging, and other aspects of the product

1. Rapid cooling, independently designed high-efficiency heat exchange system;
2. Siemens PLC control, high-definition touch screen display, with multiple protection functions;

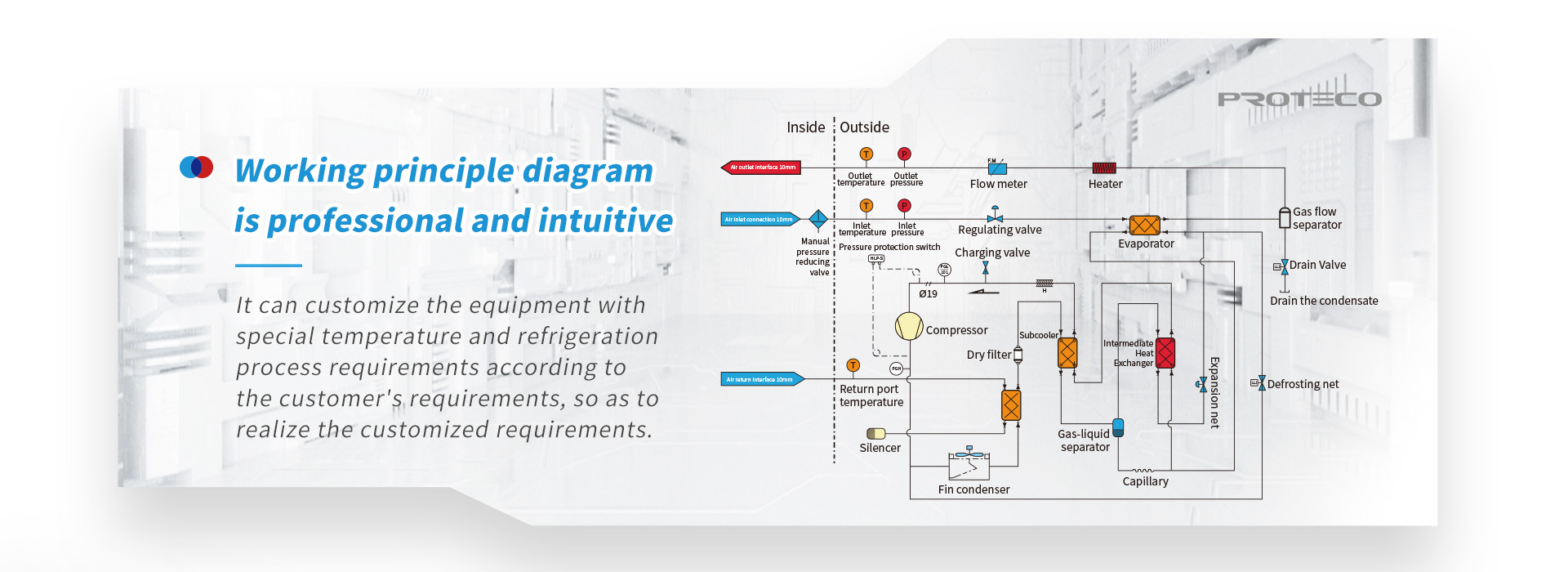

3. Dry gas enters the unit for cooling and constant temperature treatment;
4. Integrated structure: The system is assembled as a whole in the factory.

Consult immediately

OUR
ADVANTAGE

products

PROTECO

See the parameters clearly

Name

  • Device Name
  • Refrigeration method
  • control panel
  • Gas processing flow range
  • Flow regulation method
  • Flow regulation accuracy
  • Flow display resolution
  • temperature range
  • Temperature feedback
  • Temperature control object
  • Temperature and pressure display resolution
  • Defrosting method
  • Gas requirements
  • communication protocol
  • External input
  • Storage function
  • Gas interface size
  • Equipment voltage

Parameter Function Description

  • PTLQ series gas refrigeration machine
  • Single machine self folding air cooling
  • 7-inch color touch screen with Chinese display, easy to operate and intuitive display, capable of displaying and recording temperature curves and test data
  • 100~500L/min (customizable)
  • Proportional valve PID automatic adjustment
  • ±0.5L~±2L/min
  • 0.1L/min
  • -100 ℃~RT (equipment outlet temperature)
  • PT100 (inlet temperature, outlet temperature, external temperature, exhaust temperature)
  • outlet temperature
  • 0.01 ℃, 0.1bar
  • Manual activation, hot air defrosting
  • Nitrogen or compressed air at 0-5 bar: drying treatment is required, and the dew point temperature is lower than the minimum operating temperature.
  • MODBUS RTU Protocol RS 485 interface, compatible with TCP/IP protocol
  • External temperature sensor port and USB data interface
  • During the execution of the experiment, real-time graphical curves can be displayed to display the content; Set the actual temperature value, execute the program cycle, and have the function of skipping files and maintaining during program execution.
  • 10mm, Ferrule
  • AC 380V/3~/50Hz

Product recommendations

LCD panel testing temperature control equipment, also known as: LCD LCD constant temperature testing machine, flat panel display precision constant temperature machine, LCD panel precision constant temperature machine, LCD flat panel constant temperature machine Mainly used for precision temperature and humidity control in panel factories, wafer factories, and packaging and testing factories

LCD panel testing temperature control equipment
More

Integrate existing thermal energy (such as steam, cooling water, and ultra-low temperature liquids) into a single fluid system or secondary circuit used to control the temperature of process equipment, forming a non-contact temperature control system for a single heat conduction liquid in the reaction vessel jacket

Direct TCU solution
More

In the product development and production processes of the chemical and pharmaceutical industries, temperature control is crucial for safe and high-quality reaction products. Putec's PTHC series is suitable for process industry and process engineering, and is applied to dynamic constant temperature control of cold and heat sources such as jacket reactors, microchannel reactors, reaction devices, combined chemistry, as well as low-temperature distillation, distillation, extraction and other equipment in the pharmaceutical industry.

Microchannel tube type dedicated temperature control system
More

IGBT belongs to power semiconductor devices. In the field of new energy vehicles, as the core device of electronic control systems and DC charging piles, IGBT directly affects the power release speed, vehicle acceleration ability, and high speed of electric vehicles

IGBT high and low temperature testing
More
